10.5 Deadlock and timestamp protocols

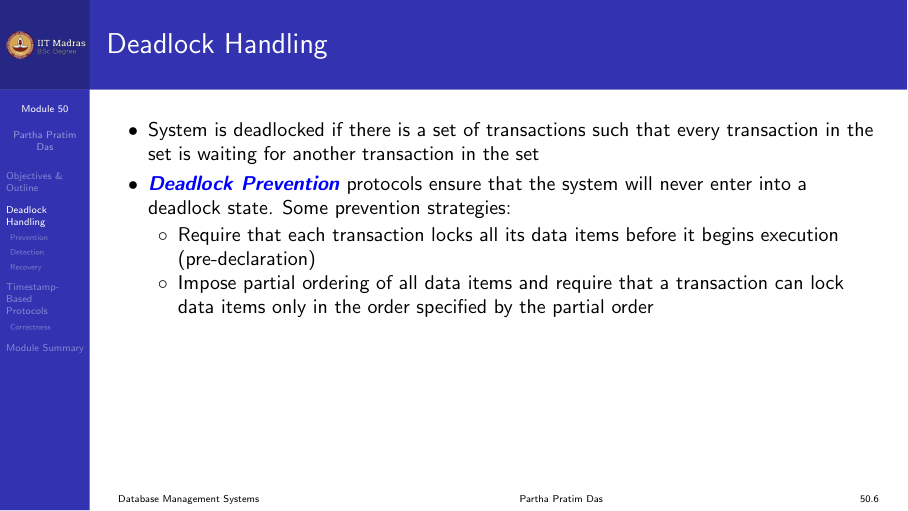

Deadlock handling

A system is in a deadlock state if there is a set of transactions such that every transaction in the set is waiting for another transaction in the set to release a lock. No transaction in the set can proceed.

Three approaches to dealing with deadlocks:

Deadlock prevention. Ensure the system never enters a deadlock.
Deadlock detection. Allow deadlocks to occur, detect them, and recover.
Deadlock avoidance. Use additional information to avoid deadlocks.

Transaction timestamps

A timestamp is a unique identifier assigned by the DBMS to identify the relative starting time of a transaction. Timestamps are used in both deadlock prevention and timestamp-based concurrency control.

Properties: - Each transaction receives a timestamp when it enters the system. - If Tᵢ starts before Tⱼ, then TS(Tᵢ) < TS(Tⱼ). - Timestamps are unique and monotonically increasing.

Deadlock prevention

Deadlock prevention protocols ensure that the system never enters a deadlock state. One prevention strategy: require that each transaction locks all its data items before it begins execution (pre-acquisition).

Two common timestamp-based prevention schemes:

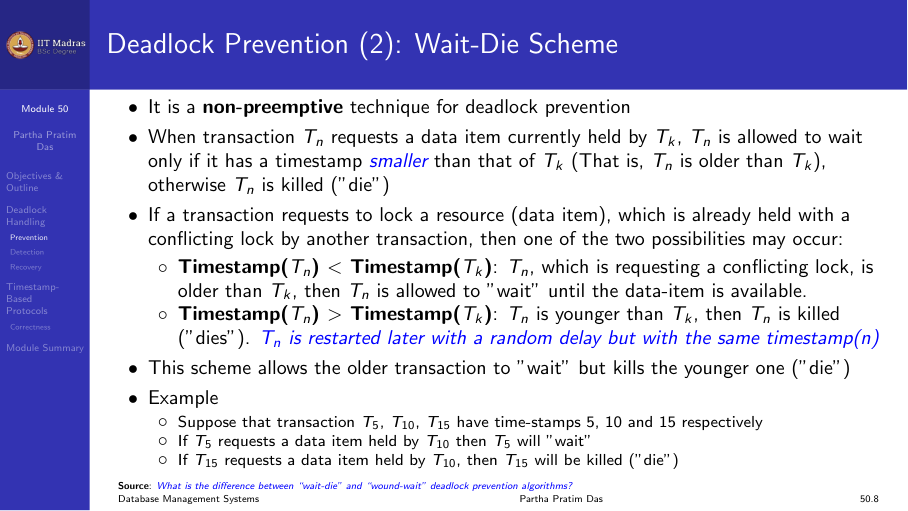

Wait-die scheme (non-preemptive)

When transaction Tᵢ requests a data item held by Tⱼ:

If TS(Tᵢ) < TS(Tⱼ) (Tᵢ is older), Tᵢ is allowed to wait.
If TS(Tᵢ) > TS(Tⱼ) (Tᵢ is younger), Tᵢ is killed (dies) and restarted with its original timestamp.

Older transactions wait for younger ones. Younger transactions never wait for older ones — they die instead.

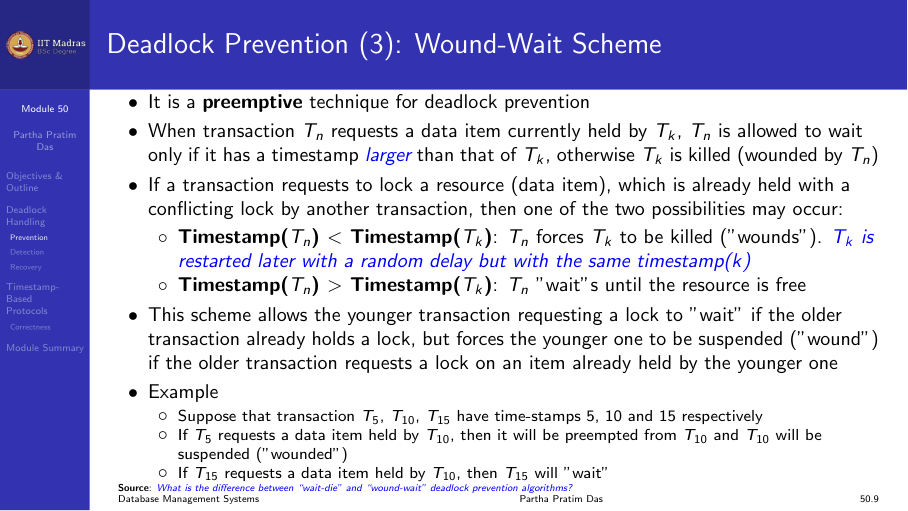

Wound-wait scheme (preemptive)

When transaction Tᵢ requests a data item held by Tⱼ:

If TS(Tᵢ) < TS(Tⱼ) (Tᵢ is older), Tⱼ is wounded (killed) and its locks are released. Tᵢ gets the lock.
If TS(Tᵢ) > TS(Tⱼ) (Tᵢ is younger), Tᵢ is allowed to wait.

Older transactions wound younger ones and take their locks. Younger transactions wait for older ones.

Properties of wait-die and wound-wait

In both schemes, a rolled-back transaction is restarted with its original timestamp. This ensures that older transactions have precedence over newer ones, and starvation is avoided.

Scheme	Older wants younger’s lock	Younger wants older’s lock
Wait-die	Wait	Die
Wound-wait	Wound	Wait

Timeout-based schemes

A simpler approach: a transaction waits for a lock only for a specified amount of time. If the lock has not been granted within the timeout, the transaction is rolled back and restarted.

Advantage. Simple to implement.
Disadvantage. Difficult to choose the right timeout value. Too short causes unnecessary rollbacks. Too long causes long waits.

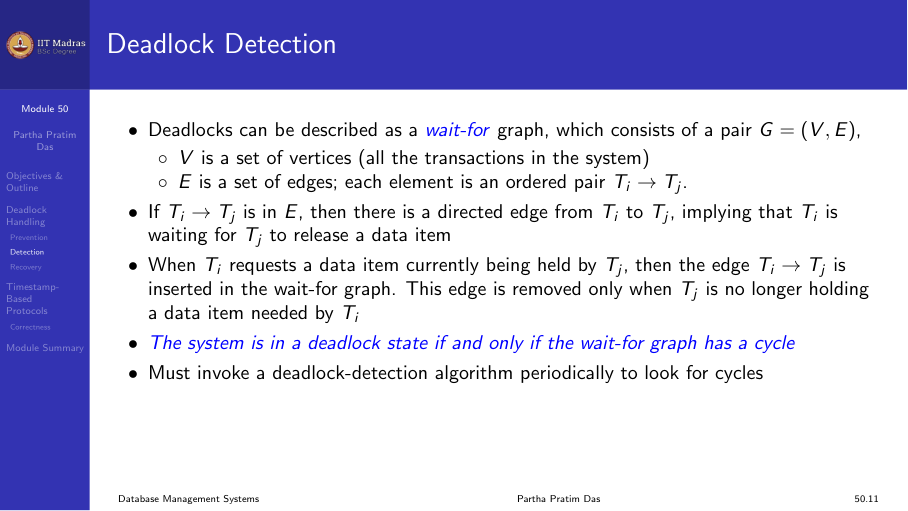

Deadlock detection

Deadlocks can be described using a wait-for graph G = (V, E):

V is the set of transactions in the system.
E contains directed edges Tᵢ → Tⱼ if Tᵢ is waiting for Tⱼ to release a data item.

The system is in a deadlock state if and only if the wait-for graph contains a cycle.

Example

No cycle (no deadlock):

T1 → T2 → T3 → T4

T1 waits for T2, T2 waits for T3, T3 waits for T4. No cycle, so eventually T4 finishes, then T3, then T2, then T1.

With cycle (deadlock):

T1 → T2 → T3 → T1

T1 waits for T2, T2 waits for T3, T3 waits for T1. No transaction can proceed. Deadlock detected.

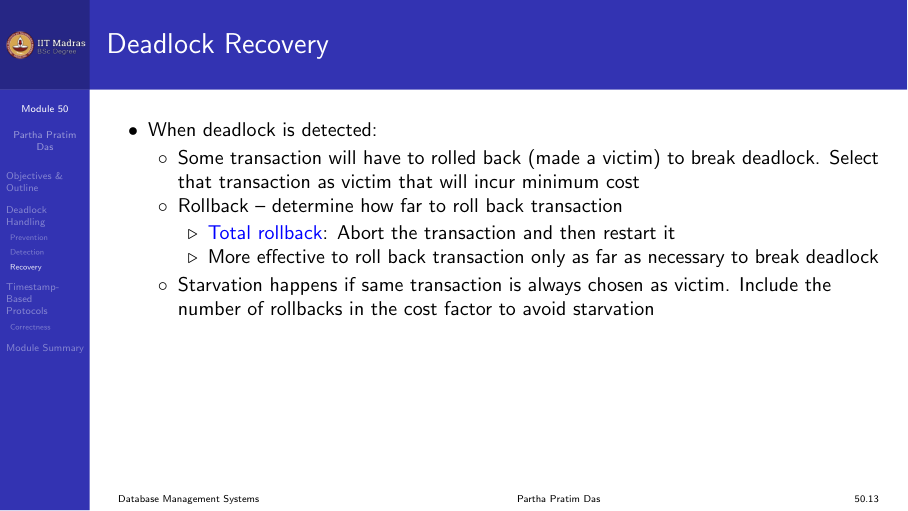

Deadlock recovery

When a deadlock is detected, the system must break it:

Select a victim. Choose a transaction to roll back. The victim should be the transaction that incurs the minimum cost (fewest locks, least work, furthest from completion).
Rollback. Determine how far to roll back:
- Total rollback. Abort the transaction and restart it.
- Partial rollback. Roll back to a savepoint and release only the locks held since that point.
Starvation. A transaction selected as victim repeatedly should not starve. The system must ensure that the same transaction is not always chosen.

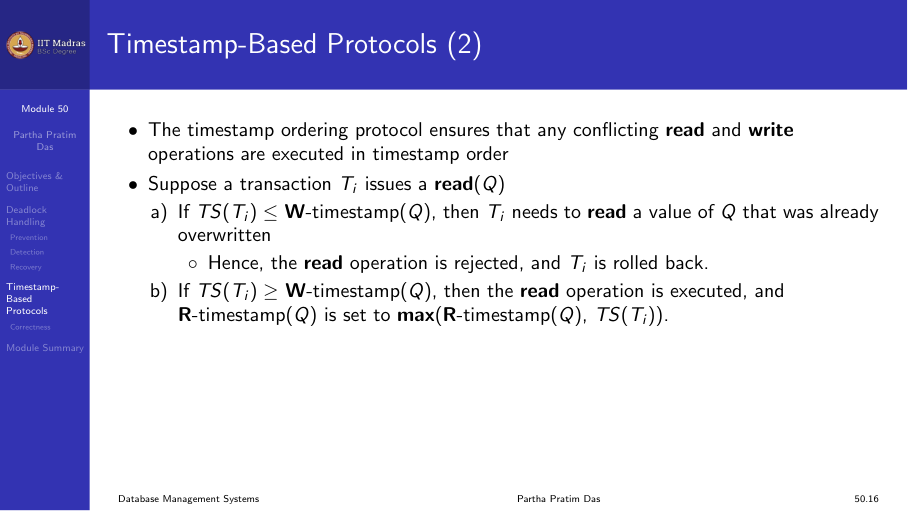

Timestamp-based protocols

Timestamp-based protocols use timestamps to order transactions without using locks. They eliminate deadlocks entirely.

The timestamp-ordering protocol ensures that conflicting read and write operations are executed in timestamp order.

Read operation

When transaction Tᵢ issues read(Q):

If TS(Tᵢ) < W-timestamp(Q), the write timestamp of Q is newer than Tᵢ. Tᵢ needs to read a value of Q that was already overwritten. Reject read and roll back Tᵢ.
If TS(Tᵢ) ≥ W-timestamp(Q), execute the read. Set R-timestamp(Q) = max(R-timestamp(Q), TS(Tᵢ)).

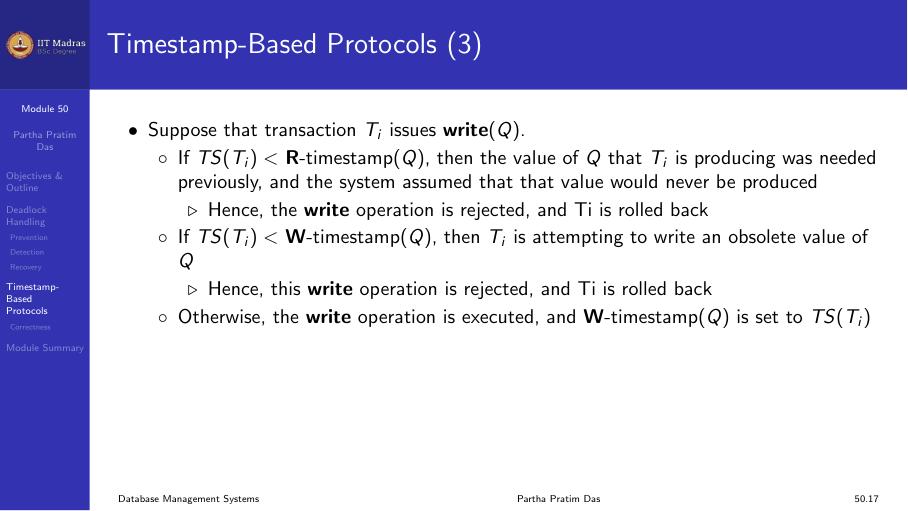

Write operation

When transaction Tᵢ issues write(Q):

If TS(Tᵢ) < R-timestamp(Q), the value of Q that Tᵢ is producing was already needed by a newer transaction. Reject write and roll back Tᵢ.
If TS(Tᵢ) < W-timestamp(Q), Tᵢ is attempting to write an obsolete value of Q. Reject write and roll back Tᵢ.
Otherwise, execute the write. Set W-timestamp(Q) = TS(Tᵢ).

Example

A partial schedule for transactions with timestamps 1, 2, 3, 4, 5:

T1: read(X)
T2: read(Y)
T3: write(Y) → T3 timestamp < R-timestamp(Y)? No. Execute.
T4: write(X) → TS(4) < R-timestamp(X)? No (set by T1). Execute.
T5: read(Y) → TS(5) < W-timestamp(Y)? TS(5)=5, W-timestamp(Y)=3. No. Execute.

The timestamp order ensures serializability.

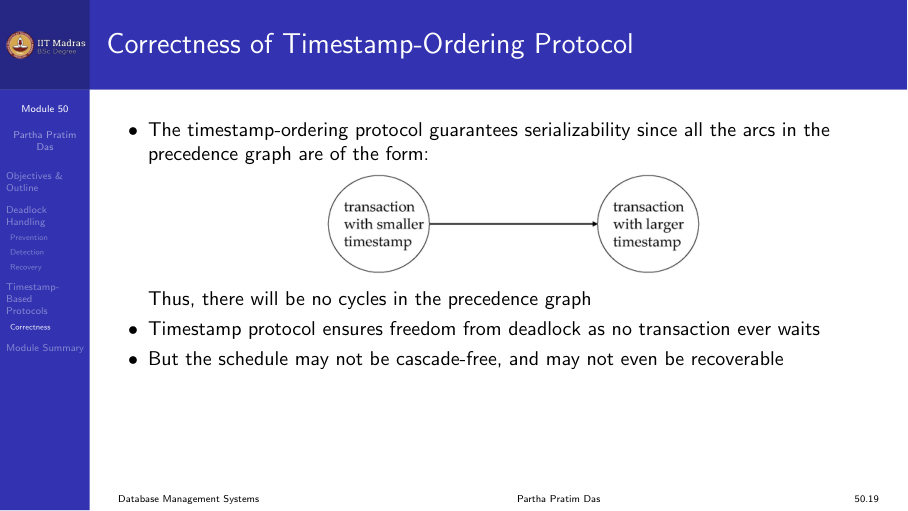

Correctness

The timestamp-ordering protocol guarantees serializability because all edges in the precedence graph go from a transaction with a smaller timestamp to a transaction with a larger timestamp:

TS(smaller) → TS(larger)

No cycles can form in such a precedence graph.

Summary

Deadlock prevention (wait-die, wound-wait) ensures the system never deadlocks by controlling which transactions wait.
Deadlock detection uses a wait-for graph; a cycle indicates deadlock.
Recovery selects a victim and rolls it back.
Timestamp-based protocols order transactions by timestamps without locks, eliminating deadlocks entirely.
Each approach has trade-offs between concurrency, overhead, and complexity.
