10.2 Serializability

Introduction

When transactions execute concurrently, their instructions interleave. Not all interleavings produce correct results. A schedule is serializable if it is equivalent to some serial schedule — that is, the result is the same as if the transactions had run one after another.

Assumption: each transaction preserves database consistency when run alone. Therefore, a serial schedule always preserves consistency. A serializable schedule also preserves consistency, even though instructions are interleaved.

Serial schedules recap

Schedule 1 (T1 then T2) and Schedule 2 (T2 then T1) are serial. Both produce valid results.

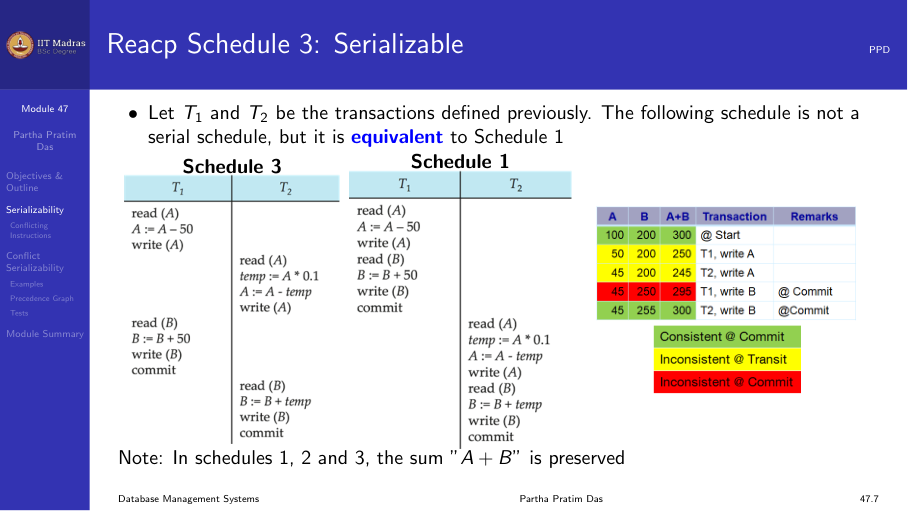

Schedule 3 is non-serial but equivalent to Schedule 1. It is serializable.

Serializable schedule

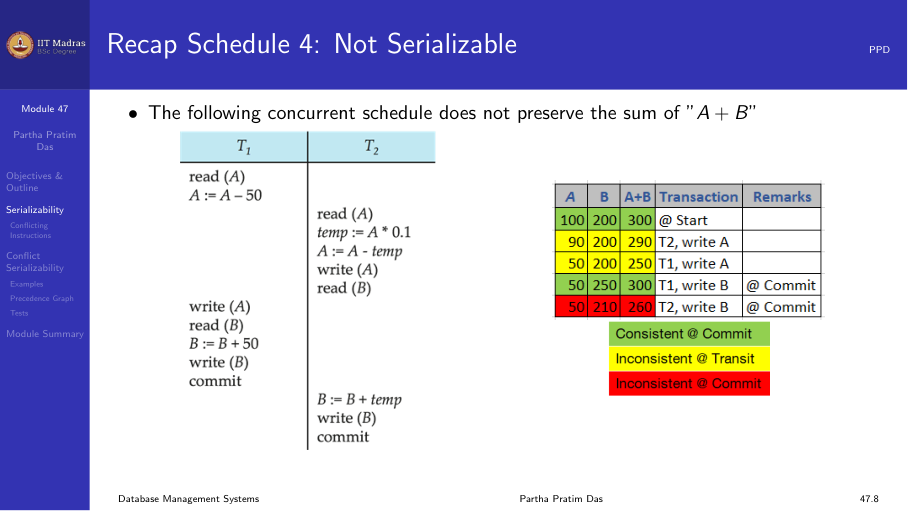

Schedule 4 is non-serial and NOT equivalent to any serial schedule. It produces an incorrect result (A + B changes).

Non-serializable schedule

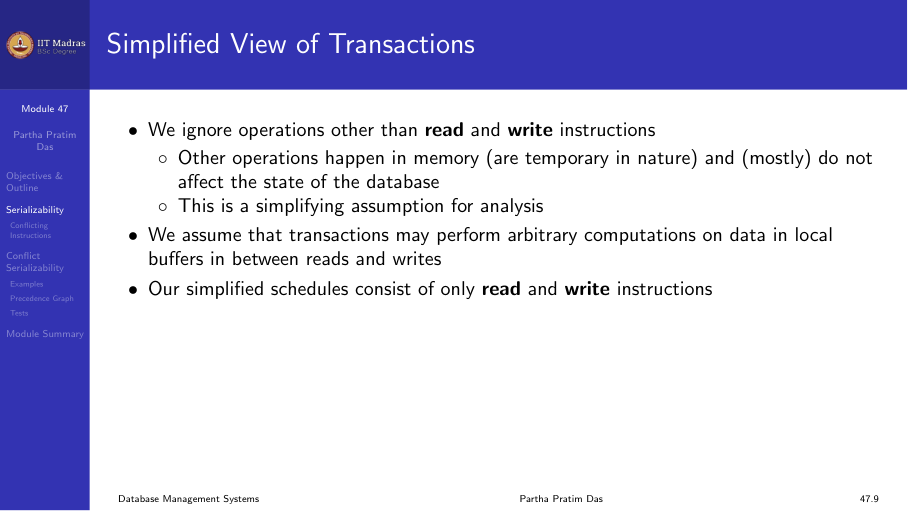

Simplified view of transactions

For analysis, we ignore operations other than read and write instructions. Other operations (computations in memory) are temporary and do not affect the database state.

We assume transactions may perform arbitrary computations on data in local buffers, but only read and write operations interact with the shared database.

Simplified transaction view

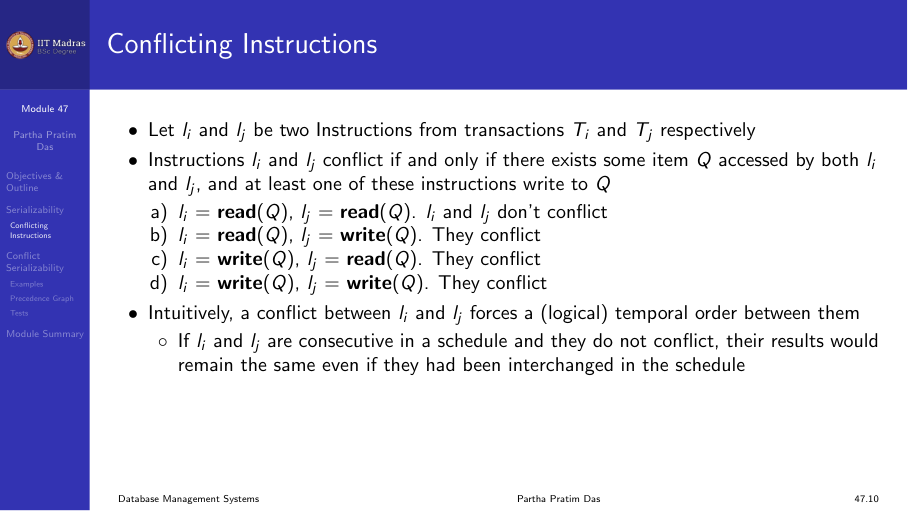

Conflicting instructions

Two instructions Iᵢ and Iⱼ from transactions Tᵢ and Tⱼ conflict if they access the same data item Q and at least one of them writes to Q.

Iᵢ Iⱼ Conflict?
read(Q) read(Q) No
read(Q) write(Q) Yes
write(Q) read(Q) Yes
write(Q) write(Q) Yes

Two conflicting instructions must be executed in the same order in any equivalent schedule.

Conflicting instructions

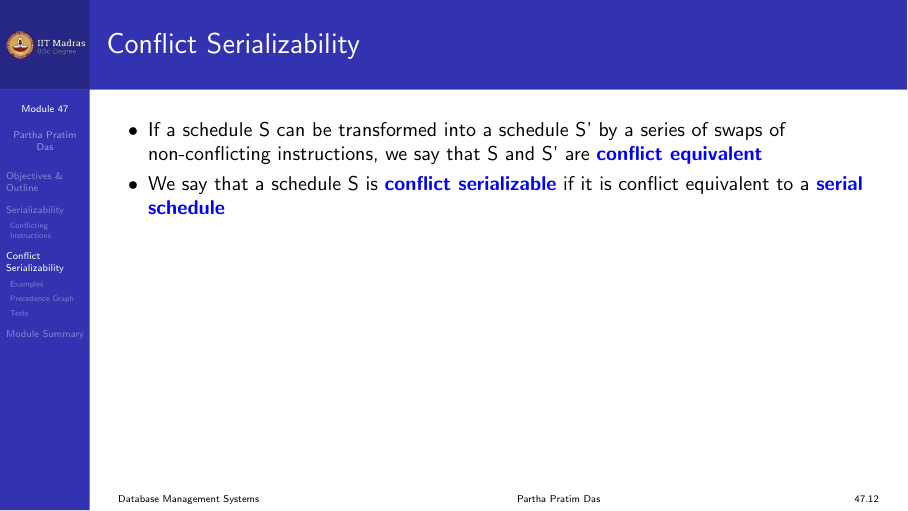

Conflict serializability

A schedule S is conflict serializable if it can be transformed into a serial schedule by swapping adjacent non-conflicting instructions.

Two schedules are conflict equivalent if one can be obtained from the other through a series of non-conflicting swaps.

Conflict serializability

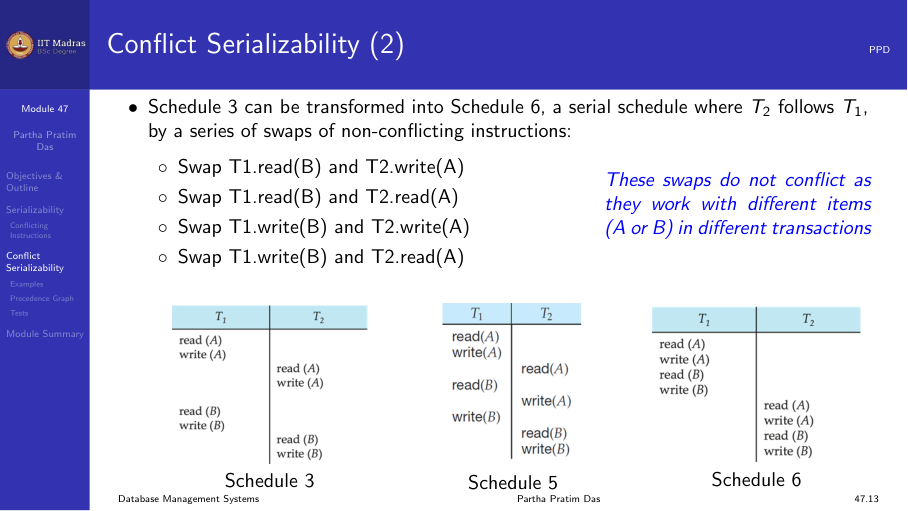

Example

Schedule 3 can be transformed into a serial schedule (T1 then T2) by swapping non-conflicting instructions:

  1. Swap T1.read(B) and T2.write(A) — they access different items (B vs A).
  2. Swap T1.read(B) and T2.read(A) — different items.
  3. Swap T1.write(B) and T2.write(A) — different items.

After these swaps, all of T1’s instructions come before T2’s, producing a serial schedule.

Conflict serializability example

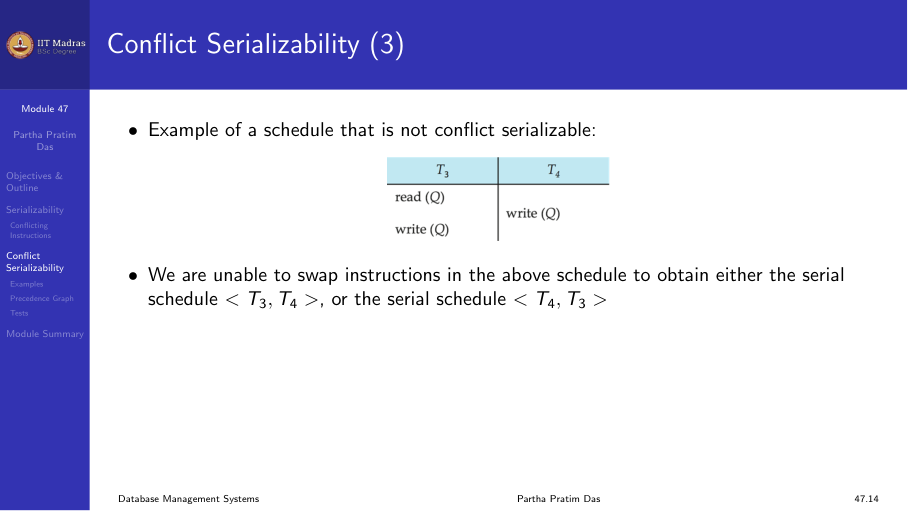

Example of a non-conflict-serializable schedule

T1: read(Q), write(Q)
T2: write(Q)

We cannot swap any instructions because T1.read(Q) and T2.write(Q) conflict, and T1.write(Q) and T2.write(Q) conflict. No transformation can produce a serial schedule.

Non-conflict-serializable schedule

Precedence graph

A precedence graph is a directed graph where:

  • Vertices. One vertex for each transaction.
  • Edges. An edge Tᵢ → Tⱼ exists if there is a conflicting pair of instructions where Tᵢ accesses the data item before Tⱼ.

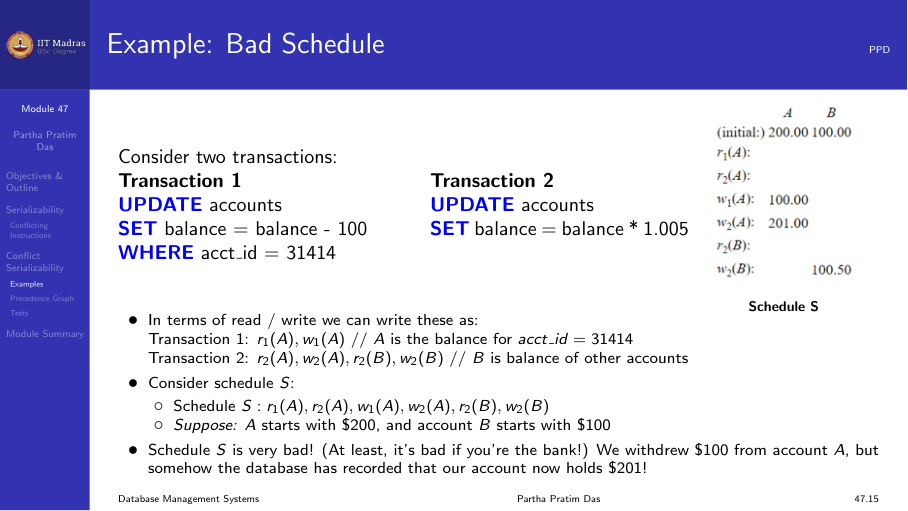

Example: bad schedule

Consider two transactions:

T1: UPDATE accounts SET balance = balance - 100
T2: UPDATE accounts SET balance = balance * 1.005

In a bad interleaving, T1 reads A, then T2 reads A, then T1 writes A, then T2 writes A. The withdrawal is lost because T2’s read happened before T1’s write. The precedence graph shows T1 → T2 and T2 → T1, forming a cycle.

Bad schedule example

Testing for conflict serializability

A schedule is conflict serializable if and only if its precedence graph is acyclic (no cycles).

Cycle-detection algorithms run in O(n²) time where n is the number of vertices, or O(n + e) where e is the number of edges.

If the precedence graph has a cycle, the schedule is not conflict serializable. The database system must reject such schedules.

Precedence graph

Construction algorithm

  1. Create a vertex for each transaction.
  2. For each conflicting pair of instructions:
    1. If Tᵢ’s instruction comes before Tⱼ’s instruction, add edge Tᵢ → Tⱼ.
  3. Check for cycles.

If no cycles exist, the schedule is conflict serializable.

View serializability

Not all serializable schedules are conflict serializable. Consider:

T1: write(A), write(B)
T2: write(A)
T3: write(A)

Schedule: T1.write(A), T2.write(A), T3.write(B), T1.read(B), T3.write(A)

We cannot swap any instructions (all operations conflict on A or B), but the schedule may still be equivalent to some serial schedule.

A schedule is view serializable if it is view equivalent to a serial schedule. View serializability is a broader notion than conflict serializability — every conflict-serializable schedule is view serializable, but not vice versa.

View serializability

Summary

  • A serializable schedule produces the same result as a serial schedule.
  • Two instructions conflict if they access the same item and at least one writes.
  • A schedule is conflict serializable if it can be transformed into a serial schedule by swapping non-conflicting instructions.
  • The precedence graph test: a schedule is conflict serializable iff the graph is acyclic.
  • View serializability is broader but harder to test.
