5.2 Functional Dependencies
Functional Dependencies
Functional dependencies are required to develop a formal mathematical theory for good relations. A functional dependency is a generalization of the notion of a key.

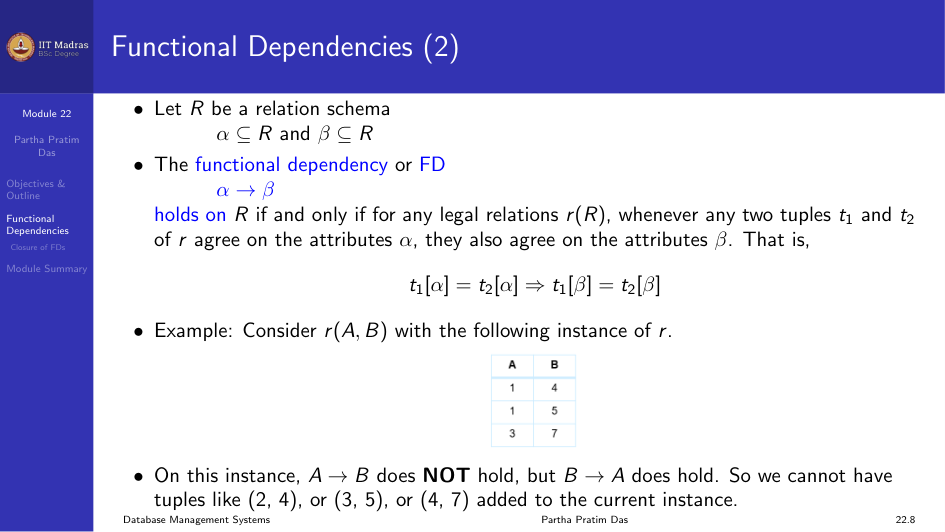

Let R be a relation schema. Let \alpha \subseteq R and \beta \subseteq R.
The functional dependency \alpha \rightarrow \beta holds on R if and only if for any legal relations r(R), whenever any two tuples t_1 and t_2 of r agree on the attributes \alpha, they also agree on the attributes \beta. That is:
t_1[\alpha] = t_2[\alpha] \Rightarrow t_1[\beta] = t_2[\beta]
Example
Consider r(A, B) with the following instance:
If A \rightarrow B does NOT hold but B \rightarrow A does hold, then we cannot have tuples like (2, 4) or (3, 5) added to the current instance.
Superkeys and Candidate Keys
K is a superkey for relation schema R if and only if K \rightarrow R.
K is a candidate key for R if and only if: - K \rightarrow R - For no \alpha \subset K, \alpha \rightarrow R
Expressing Constraints with FDs
Functional dependencies allow us to express constraints that cannot be expressed using superkeys.
Consider the schema:
\text{inst\_dept}(\text{ID}, \text{name}, \text{salary}, \text{dept\_name}, \text{building}, \text{budget})
We expect these functional dependencies to hold: - \text{dept\_name} \rightarrow \text{building} - \text{dept\_name} \rightarrow \text{budget} - \text{ID} \rightarrow \text{budget}
But we would not expect the following to hold: - \text{dept\_name} \rightarrow \text{salary}
Uses of Functional Dependencies
We use functional dependencies to: 1. Test relations to see if they are legal under a given set of functional dependencies. If a relation r is legal under a set F of functional dependencies, we say that r satisfies F. 2. Specify constraints on the set of legal relations. We say that F holds on R if all legal relations on R satisfy the set of functional dependencies F.
Note that a specific instance of a relation schema may satisfy a functional dependency even if the functional dependency does not hold on all legal instances. For example, a specific instance of instructor may, by chance, satisfy \text{name} \rightarrow \text{ID}. In such cases we do not say that the FD holds on R.
Trivial Functional Dependencies
A functional dependency is trivial if it is satisfied by all instances of a relation.
Examples: - \text{ID}, \text{name} \rightarrow \text{ID} - \text{name} \rightarrow \text{name}
In general, \alpha \rightarrow \beta is trivial if \beta \subseteq \alpha.
More Examples of Functional Dependencies
Functional dependencies can involve multiple attributes:
\text{StudentID} \rightarrow \text{Semester}
\text{StudentID}, \text{Lecture} \rightarrow \text{TA}
\{\text{StudentID}, \text{Lecture}\} \rightarrow \{\text{TA}, \text{Semester}\}
And in an employee context:
\text{EmployeeID} \rightarrow \text{EmployeeName}
\text{EmployeeID} \rightarrow \text{DepartmentID}
\text{DepartmentID} \rightarrow \text{DepartmentName}
Closure of a Set of Functional Dependencies
Given a set F of functional dependencies, we can infer new dependencies. The closure of F, denoted F^+, is the set of all functional dependencies logically implied by F.
Example: If F = \{A \rightarrow B, B \rightarrow C\}, then F^+ = \{A \rightarrow B, B \rightarrow C, A \rightarrow C\}.
Module Summary
We introduced the notion of functional dependencies. A functional dependency \alpha \rightarrow \beta means that if two tuples agree on \alpha, they must agree on \beta. FDs generalize the concept of keys and allow us to express constraints on the data.
